THE NEW BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

THE NEW 3THE NEW BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA
BMW 3 Series Sedan: Highlights

The key facts and figures for the new BMW 3 Series Sedan at a glance:


  • Engines, consumption and CO2 emissions
  • Performance data such as displacement, hp, Nm and acceleration

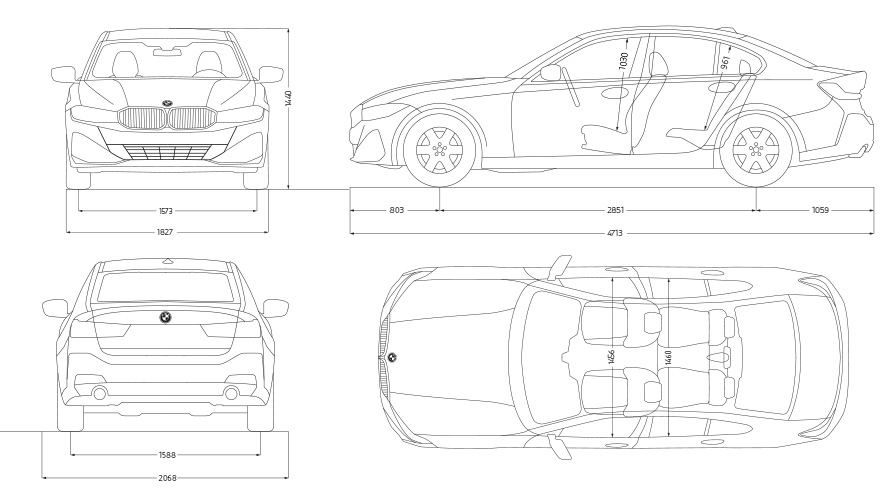

  • Weight, dimensions, wheel and tyre sizes
Read more

TECHNICAL DATA OF THE NEW BMW 3 SERIES SEDAN.

Select model

Weight

Curb weight (with driver) in kg 1,590
Max. permissible weight in kg 2,070
Permitted load in kg 555
Permitted axle load front/rear in kg 965/1,170
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in hp at 1/min 184/5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 235
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 7.4

Fuel consumption

Urban in km/l 13.2
Extra-urban in km/l 17.2
Combined in km/l 15.4
CO2 combined emissions in g/km 147
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -

Weight

Curb weight (with driver) in kg 1,600
Max. permissible weight in kg 2,080
Permitted load in kg 555
Permitted axle load front/rear in kg 980/1,170
Luggage capacity min. (seats up) in l 480
Luggage capacity max. (seats down) in l -
Trailer load (unbraked) in kg 750
Trailer load 12% (braked) in kg 1,600

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in hp at 1/min 258/5,000-6,500
Engine torque (Nm) at 1/min 400/1,600-4,000 - 1,550-4,400
Compression ratio : 1 10.2

Performance

Top speed in km/h 250
Top speed electrical in km/h -
Acceleration 0–100 km/h in s 5.9-5.8

Fuel consumption

Urban in km/l 12.5
Extra-urban in km/l 17.5
Combined in km/l 15.4
CO2 combined emissions in g/km 149
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 59

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range combined in km -
Growth capacity of lithium-ion battery in kWh -
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h -
Charging time 3,7 kW/16 A, BMW i Wallbox (0–100 %) h -

Electric engine

Electric engine power kW (PS) at 1/min -
Electric Engine torque (Nm) at 1/min -

Combined system power

Combined power kW (PS) -
Combined torque Nm -
​

Fuel consumption and CO2 emissions.

  • BMW 330i Sedan:
    Fuel consumption in km/l (combined): 15.4
    CO2 emissions in g/km (combined): 149

    BMW 320i Sedan:
    Fuel consumption in km/l (combined): 15.4
    CO2 emissions in g/km (combined): 147

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

    ** At temperatures below 0 degrees Celsius, purely electric driving mode of this plug-in hybrid will not be available until the battery has warmed up to an operational condition after the vehicle has travelled a few kilometers.
